Shimpo Digital Force Gauge - 1 Lb To 220 Lb Capacity [FG-7000]

Shimpo Digital Force Gauge - 1 Lb To 220 Lb Capacity [FG-7000] - Image 2

Shimpo Digital Force Gauge - 1 Lb To 220 Lb Capacity [FG-7000] - Image 3

Shimpo Digital Force Gauge – 1 Lb To 220 Lb Capacity [FG-7000]

Name: 2025's Best-Selling Shimpo Digital Force Gauge - 1 Lb To 220 Lb Capacity [FG-7000], Now 50% Off at Our Online Store Officefurnishingshub.com North Carolina United States of America.
SKU: DGHLA 7660034070839830895
Price: 96.99 USD
Availability: InStock

Original price was: $399.00.Current price is: $96.99.

Model

Clear

SKU: DGHLA 7660034070839830895 Categories: Accessories, Assessment Tools

7-Day Returns, 100% Quality
100% High-Quality Guarantee
No-Questions-Asked Returns
Shop quality, shop with us.

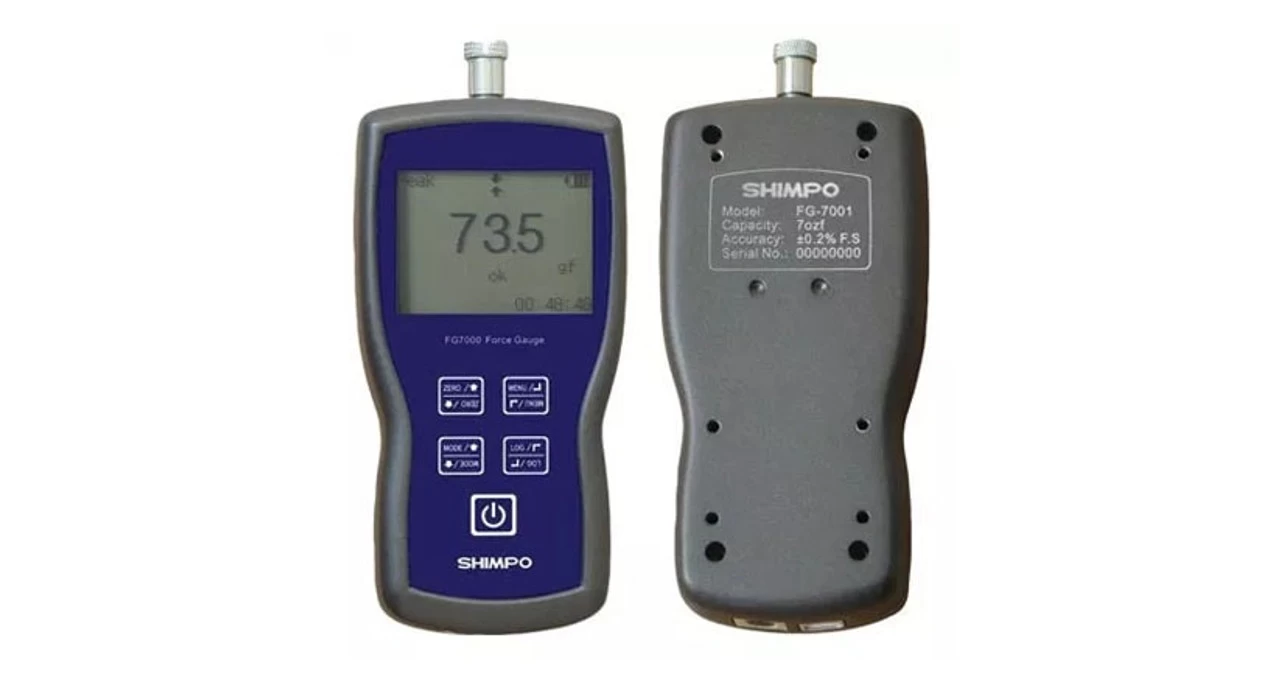

May the force be with you, or at least measured by you using the Shimpo FG-7000 Series Digital Force Gauge. This handheld force gauge is available in various models ranging from 1 to 220-pound testing capacities. The rugged housing will stand up to field testing, while still fitting comfortably in the palm of your hand.

The easy-read display has an LED backlight for use in less-than-optimal lighting conditions. The display also rotates 180 degrees when the force gauge is mounted upside down in a test stand. The simple to use keypad allows users to instantly switch between push and pull testing. More in-depth menu options offer the functionality of switching measurement options, sorting through the store memory data, printing data points and changing the system settings.

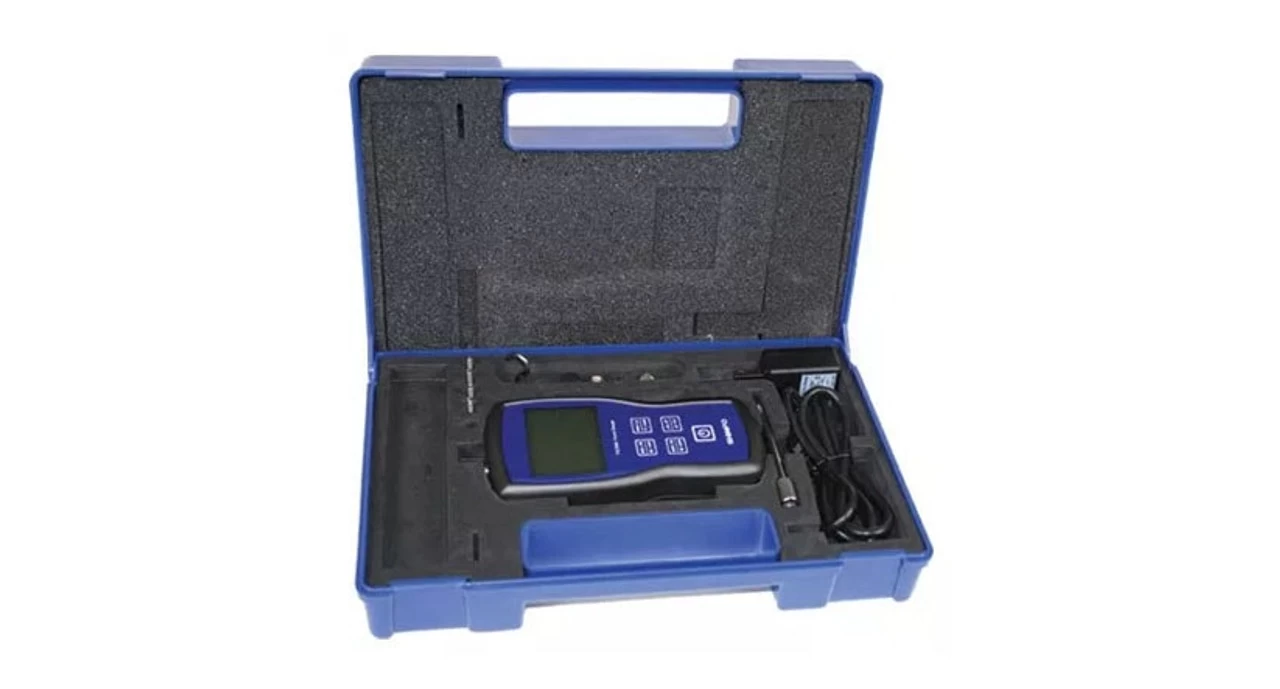

Though this force gauge may look simple, the Shimpo FG-7000 series adapts to many different testing applications to deliver quality results no matter the job. Included with the Shimpo FG-7000 is a carrying case, charger, USB cable, calibration certificate and six different attachments for various testing applications.

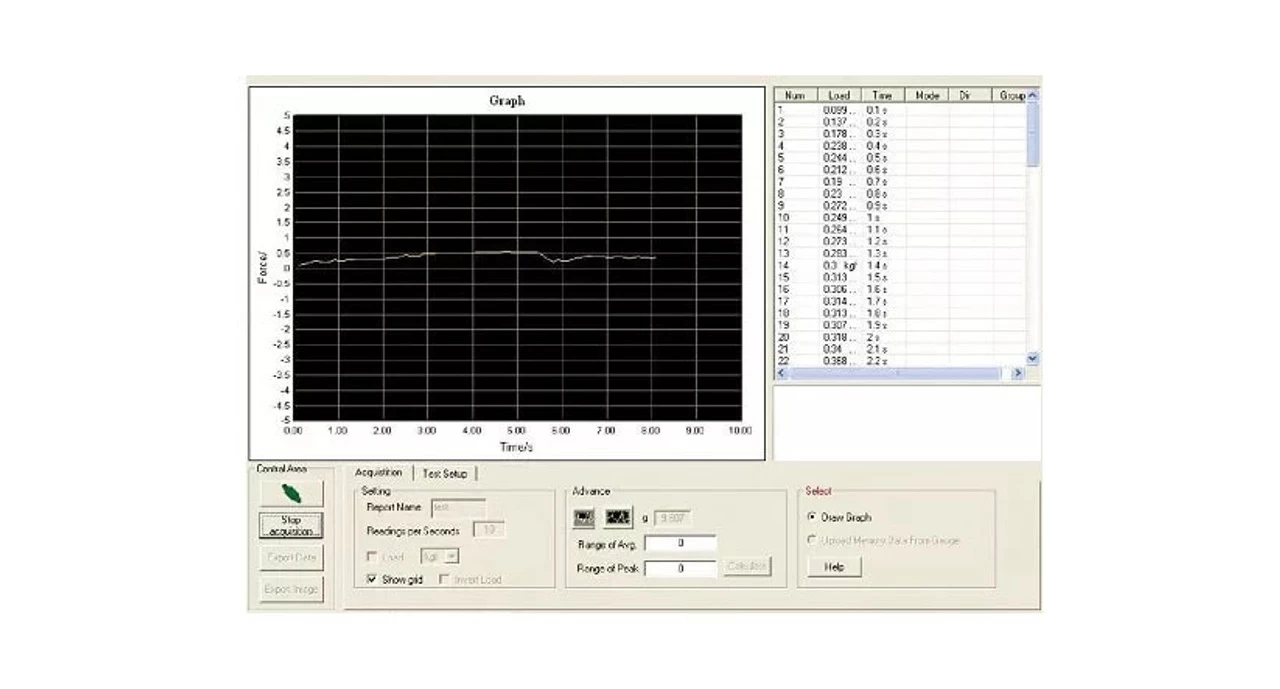

Shimpo also offers a free software program for use with the Shimpo FG-7000 Series Digital Force Gauge. Simply plug the gauge into a PC computer and a driver will automatically begin the installation process. Data can be logged while the force gauge is connected to the computer, or previously acquired data can be uploaded from the force gauge.

The Shimpo FG-7000 Series Digital Force Gauge packs functionality into a compact design and delivers quality results.

Features

Free software program allows data to be sent to a computer and graphed for further analysis
Three testing modes – track, peak, and auto-peak
180-degree, rotating display can be viewed hand-held or mounted upside down on a test stand
Quick sample rate (1000 Hz) with high accuracy (± 0.2% F.S.)
Programmable high and low limits provide quick audio/visual indicator of pass/fail testing
Multi-language display works for customers around the world
Includes carrying case, charger, USB cable, calibration certificate, and six attachments

Accuracy	± 0.2% F.S.
Display	2.1″ W x 1.6″ H dot matrix LCD with LED backlight
Display update	10 times/ second
Sampling rate	1000 Hz
Overload	150% of F.S.
Power	3.6 VDC 800mAH Ni-MH rechargeable batteries
Battery life	16 hrs continuous use
Temperature range	14 to 104° F
Dimensions	5.7″ H x 2.9″ W x 1.4″ D
Weight	1.5 lb
Approvals	CE
Warranty	1 year
Included accessories	Carrying case, AC adaptor/charger, USB cable, calibration certificate, 6 attachments: hook, flat tip, conical tip, chisel tip, notched tip, extension shaft

Model	11 lb/ 5 kg capacity, 220 lb/ 100 kg capacity, 22 lb/ 10 kg capactity, 2.2 lb/ 1 kg capacity, 1.1 lb/ 500 g capacity, 4.4 lb/ 2 kg capacity, 110 lb/ 50 kg capacity, 44 lb/ 20 kg capacity
