Shimpo Digital Torque Gauge [FG-7000T]

Original price was: $331.00.Current price is: $97.99.

SKU: -4109104483934826979 Categories: Accessories, Assessment Tools

7-Day Returns, 100% Quality
100% High-Quality Guarantee
No-Questions-Asked Returns
Shop quality, shop with us.

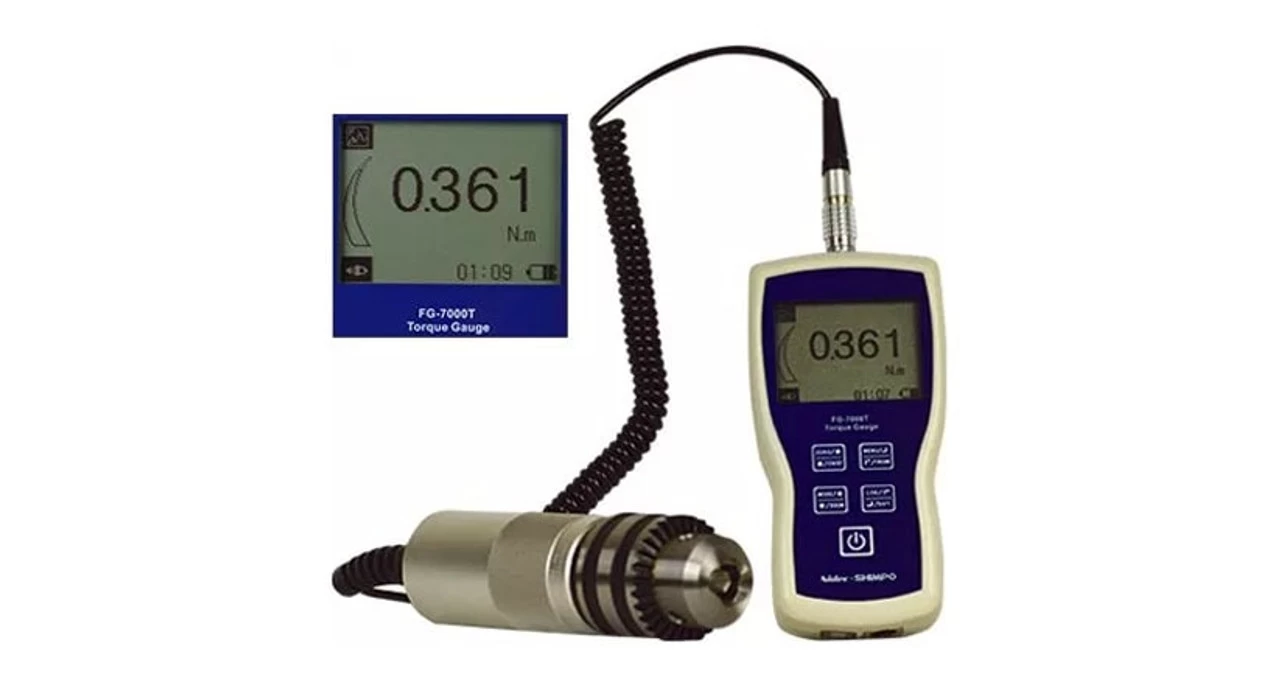

The Shimpo Digital Torque Gauge [FG-7000T] places reliable testing at your fingertips. This compact, handheld tester features an external sensor that is available in three different capacities, 1, 5, or 10 N-m. The sensor connects to the torque gauge through a standard chuck adapter. Each Shimpo Digital Torque Gauge includes a key chuck, AC adapter/ charger, USB cable, calibration certificate, and carrying case.

Torque testing on the go has never been easier than with the Shimpo Digital Torque Gauge. Carry this torque gauge around the warehouse to test the torque of valves or door hardware. Or set up a pass/fail quality system on a production line. Four modes of operation make it easy to set up the torque gauge to your specific testing requirements.

The Shimpo Digital Torque Gauge is as robust inside as it is on the outside with a large memory capacity and rugged aluminum outer casing. With a memory capacity of 1,000 data points, you will be able to perform tests many times over before coming close to running out of storage space. And if viewing the collected data on the large, backlit display isn’t enough, export the data to a PC using the included USB cable and free software download.

Features

Handheld torque gauge with external sensor in three capacities, 1, 5, or 10 N-m
Four modes of operation – track, peak, first peak, or preset mode

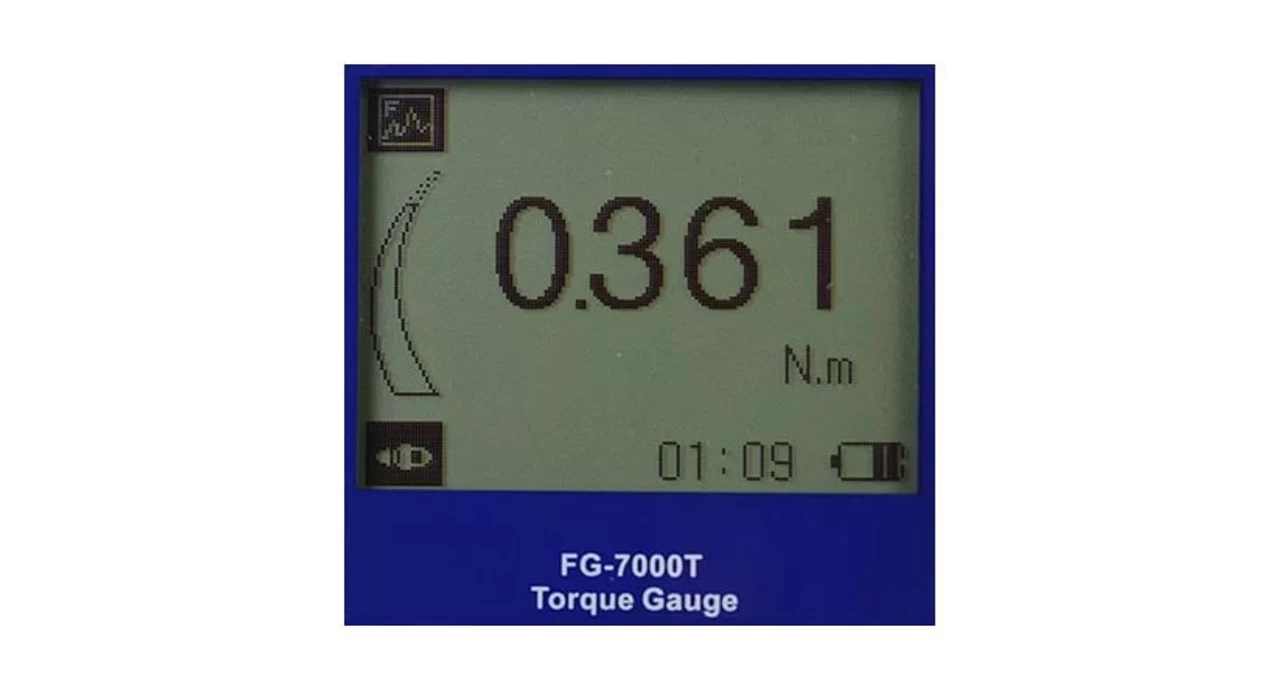

Large, backlit display rotates 180 degrees for use in various positions
Free PC software lets you view, graph, and analyze data
Programmable high and low tolerances for production line testing
Long battery life offers 16 hours of continuous use on each full charge

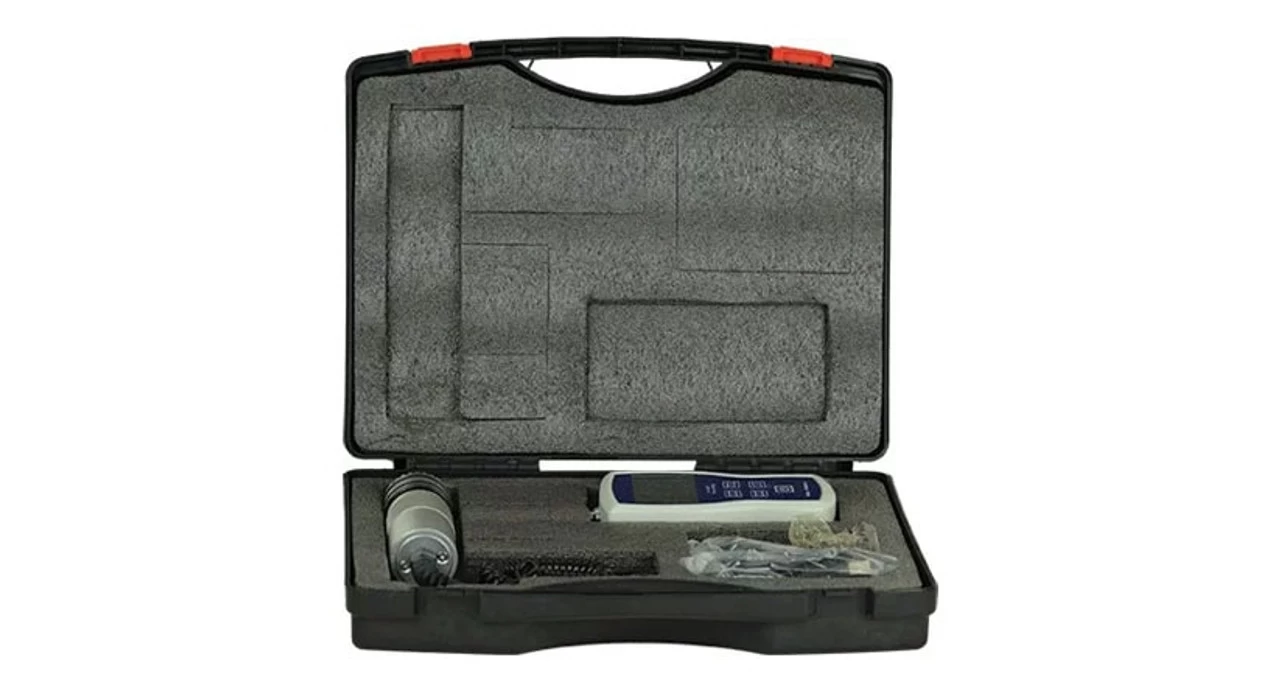

Accessories include carrying case, key chuck, AC adapter/ charger, USB cable, calibration certificate

Dimensions	2.9″ W x 5.7″ H x 1.4″ D
Accuracy	± 0.3% F.S.
Units of measure	N-cm, N-m, lbf-in, kgf-cm (depending on range)
Measurement modes	Peak, First peak preset, or Track mode
Overload protection	120% of F.S.
Sampling rate	1000 Hz
Display update rate	10 times/ second
Memory	1000 data
Set point	Programmable high and low limits
Battery life	16 hrs use per charge
Outputs	USB, serial port RS-232, high & low limit NPN
Operating temperature	14 to 104° F (-10 to 40° C)
Housing	Aluminum
Included accessories	Key chuck, AC adapter/ charger, USB cable, calibration certificate
Warranty	1-year
