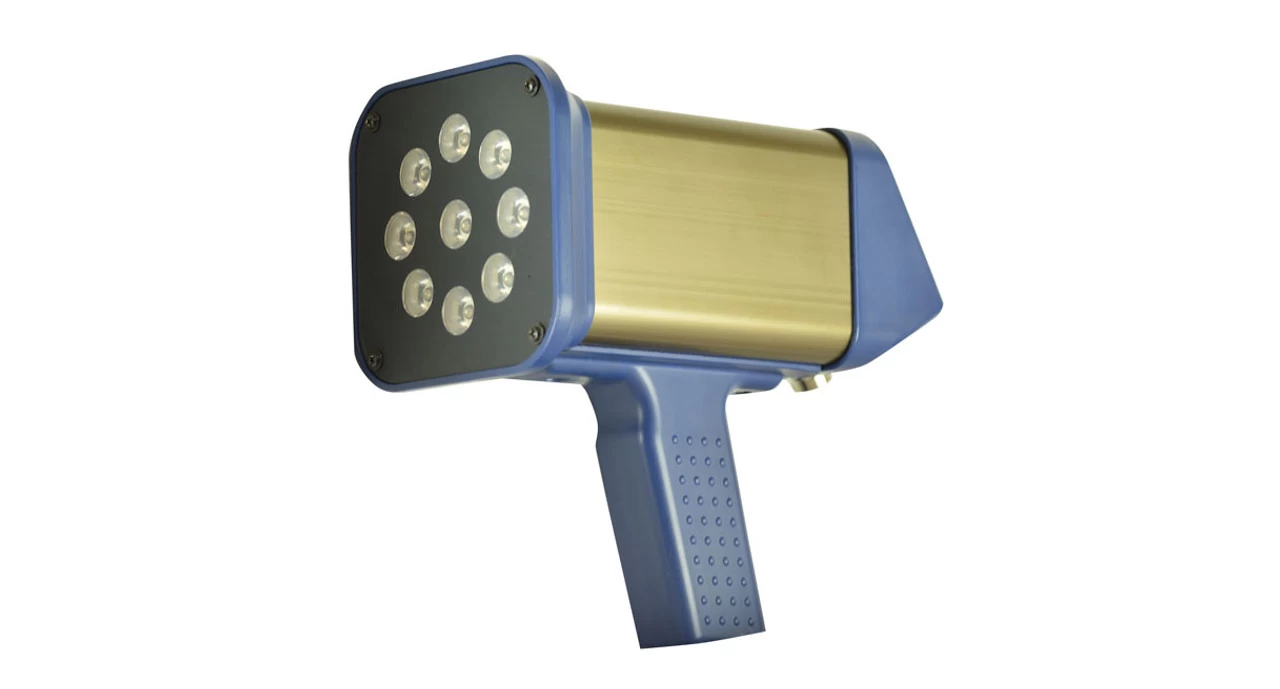

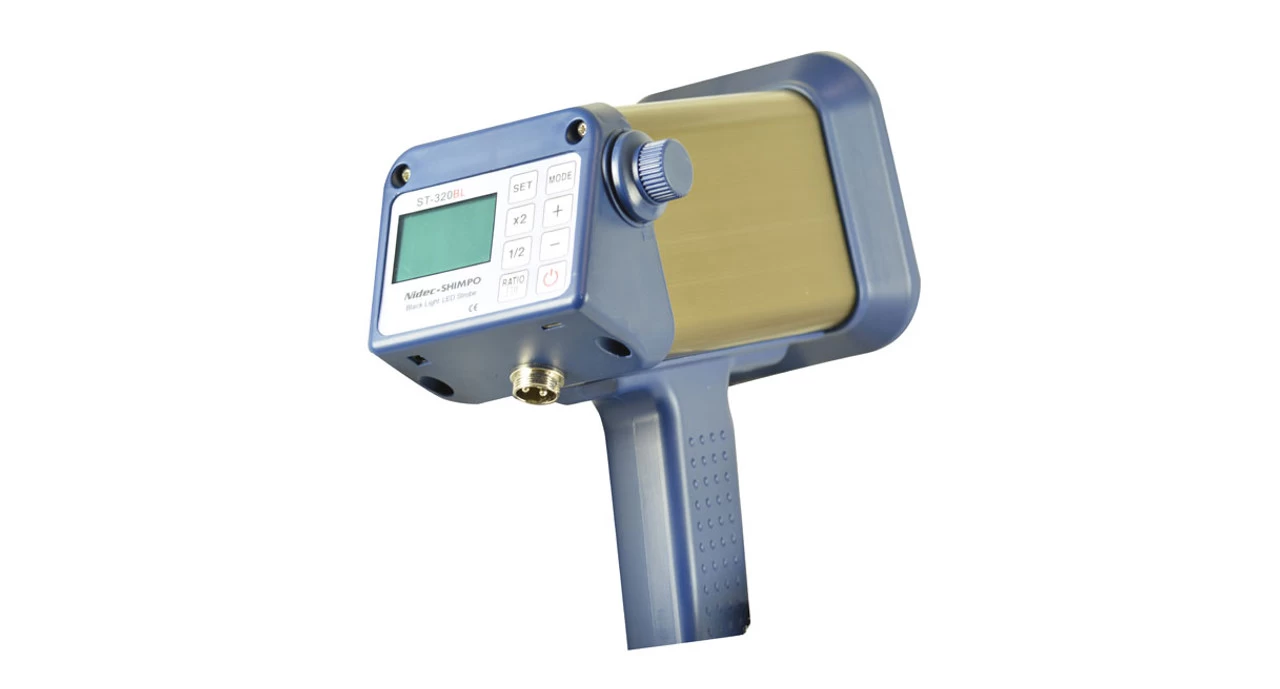

Shimpo ST-320BL-1 Blacklight LED Stroboscope, 120 VAC Or 230 VAC
Original price was: $359.00.$99.99Current price is: $99.99.
- 7-Day Returns, 100% Quality
- 100% High-Quality Guarantee
- No-Questions-Asked Returns
- Shop quality, shop with us.
Utilizing the power of bright high-powered black light CREE LED lamps, the Shimpo ST-320BL-1 Blacklight LED Stroboscope is ideal for UV ink printing applications. The ST-320BL’s LED array delivers a bright, stable strobe light over a wide measurement range and boasts a lifetime that far exceeds comparative xenon lit stroboscopes. The unit can work off user-adjusted flash frequency or from a remote sensor’s signal which will automatically adjust to corresponding process fluctuations.
The Shimpo ST-320BL-1 Blacklight LED Stroboscope is a must-have tool for all your ergonomic assessment jobs.
Features
- Wide Flash Range 60 – 120,000 Flashes/min. (1-2000 Hz) can be adjusted to meet almost all high speed applications
- Long-life Black Light LED operation for UV ink applications
- Adjustable Flash Pulse duration delivers sharper images for precision inspection
- Phase Shift Advances for viewing gear teeth, cutting surfaces, repeats, or drifting images
- Input sensor trigger function allows process machinery to control the unit’s flash rate
- Delay time adjustment combined with leading or trailing edge activation simplifies unit setup
- x2 and 1/2 keys for large adjustment rate change or +/- for fine tuning
- 1/4-20 UNC connection for permanent mount applications (remove trigger handle)
| Flash rate range | 60 to 120,000 FPM; 1-2000 Hz |
| Accuracy | 0.01% ±1 digit of F.S. @ 77°F (25°C) |
| Lamp Lifetime | Approx. 3 – 5 years depending on usage |
| Display | Backlit LCD |
| Flash duration | 0.1°- 2.5° |
| Phase shift | 0-359° |
| Power requirement | 100-120 VAC 230V VAC |
| Input signal | 12 V Pulse Input; 3 pin M-12 |
| Input signal range | 60-120,000 FPM (1-2000 Hz) |
| Input pulse range | Over 50 µs |
| Input signal flash delay | 0-999 ms; 0-359° |
| Voltage | Standard 115V, 230V |
|---|
